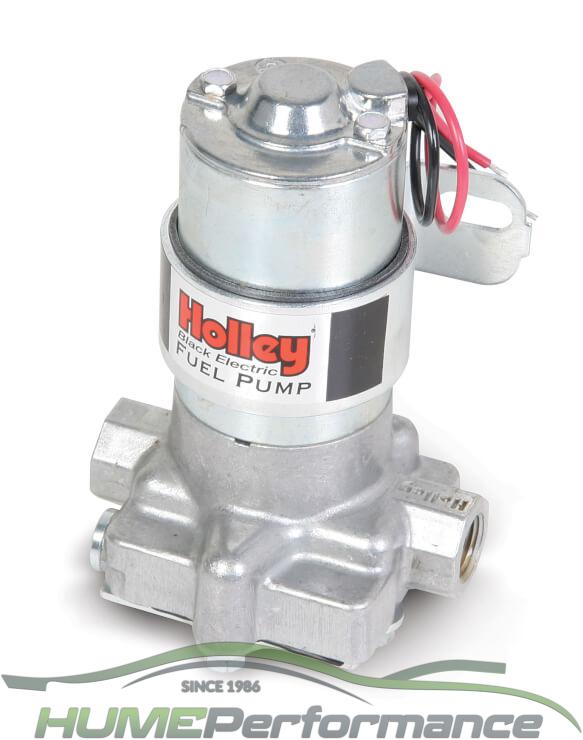

Holley 140 Gph Black Electric Fuel Pump


In Stock
SKU: H12-815-1 Category:


The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70’s. Their time proven rotor/vane design is known to get the job done in an affordable package.
Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Improved design for street/strip applications
Distinctive “Black” logo
Compatible with alcohol or methanol fuels
Not designed for use on aircraft of any type.
Flows 140 GPH (free flow)
Flows 120 GPH at 9 psi
Maximum pressure is 14 psi
3/8” NPT inlet and outlet ports
Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
Motor draws only 4 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems


Additional information

Weight 2 kg
Dimensions 20 × 15 × 15 cm
